OnePlus could be preparing a smartphone with a cooling system that does more than simply spread heat across the device. A leaked schematic shared by tipster Digital Chat Station reportedly reveals a built-in active cooling fan with a dual-airflow architecture, designed to cool the processor area while also managing the temperature of the phone’s rear panel. The reported dual-path design targets both the processor area and the rear shell: one airflow path is intended to control chipset temperatures, while the other helps reduce rear-panel heat. The design also reportedly directs hot exhaust away from the user’s grip.
The schematic has not been confirmed as an official OnePlus image, and the tipster has not explicitly identified the smartphone by name. However, the design is being linked to the rumored OnePlus Ace 7, which is expected to target performance-focused users in China.
If the reported design makes it into a retail device, it could distinguish the phone from conventional smartphones that rely primarily on passive cooling. The combination of a dedicated fan and separate airflow paths suggests that OnePlus may be looking to address not only processor heat but also the discomfort caused by a warming rear panel during extended gaming sessions.
OnePlus Ace 7 Leak: How the Dual-Airflow Cooling System Could Work
Most smartphones use passive thermal management systems that transfer heat away from the processor and distribute it across a larger internal area. Components such as vapor chambers, graphite sheets, and thermal interface materials help move that heat toward the phone’s frame and rear panel, where it can dissipate into the surrounding air. An active cooling system takes a different approach by using a fan to move air through or around designated cooling channels. The system can help carry heat away from critical components and release it through an exhaust path.

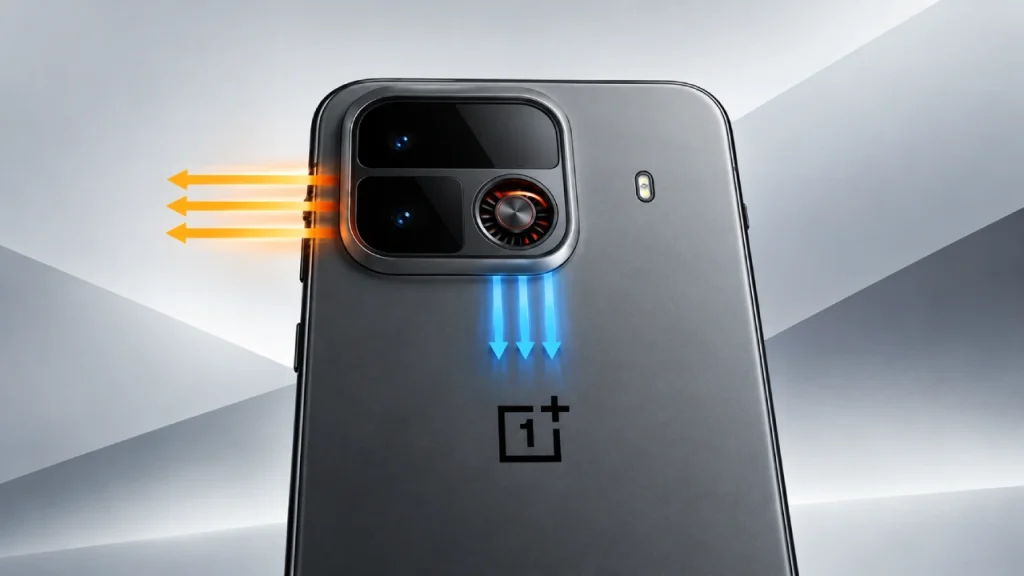

According to Digital Chat Station’s reported leak, the new design uses two airflow directions. One path is said to carry hot air sideways from the processor area, while another directs cooler air downward toward the rear panel. This arrangement could help the phone manage two related thermal challenges: heat generated by the chipset and surface temperatures where the user holds the device.
The exact internal layout, fan dimensions, and airflow capacity remain unknown. The leaked schematic also does not establish how much heat the system can remove under sustained workloads, so its real-world effectiveness will need to be assessed through testing.
Hot Air Exhaust Could Help Keep the Phone Comfortable During Gaming
The reported sideways exhaust is one of the more interesting details. During gaming, a smartphone’s processor and graphics hardware can generate considerable heat, particularly when a game places a sustained load on the chipset. That heat can spread to the rear panel and frame, making the device uncomfortable to hold over longer sessions.
Digital Chat Station’s reported design aims to send hot air sideways, away from the user’s hands. If implemented effectively, this could reduce the amount of hot exhaust directed toward the areas where players grip the phone. The downward airflow is reportedly intended to help manage the temperature of the rear panel. The gaming benefit would extend beyond comfort. When a smartphone becomes too hot, its thermal management system may reduce processor or graphics performance to control temperatures. This process, commonly called thermal throttling, can affect performance consistency during demanding games.
Active cooling could help the OnePlus Ace 7 maintain performance for longer before thermal limits require the hardware to slow down. However, that remains a potential benefit. The fan cannot guarantee that the phone will avoid overheating or sustain peak performance indefinitely, and its effectiveness will depend on the final hardware, software tuning, ambient temperature,e and workload.
AI Temperature Sensor and Noise-Reduction Measures Also Tipped
The leak also mentions an AI temperature sensoralthough it does not explain how the component would operate or what decisions it would control. It is therefore too early to say whether it would adjust fan behavior, monitor particular internal zones, or work with the phone’s broader thermal-management system.
The reported design is also said to incorporate proprietary, patented technologies and optimizations intended to reduce fan noise and dust ingress. These could be important considerations for a smartphone with moving cooling hardware, particularly if the fan is expected to operate frequently during gaming. A compact fan introduces practical engineering challenges that passive cooling systems do not face in the same way. Manufacturers need to balance airflow, power consumption, acoustic output, durability, and the space available inside the phone. Dust entering the cooling path could also affect long-term reliability.
However, the leak does not provide measured noise levels, fan speeds, dust-resistance ratings, or details of any water-resistance certification. The presence of dust-reduction measures should not be interpreted as proof that the device will carry a particular ingress-protection rating.
OnePlus Ace 7 Specifications: Snapdragon Chip, 185Hz Display and 9,000mAh Battery
The cooling leak arrives alongside earlier reports about the phone’s possible hardware. According to those reports, the OnePlus Ace 7 could feature Qualcomm’s Snapdragon 8 Elite Gen 5 chipset, a 6.78-inch OLED display with a 1.5K resolution and a 185Hz refresh rate, and a battery with a capacity of around 9,000mAh.
None of these specifications have been officially confirmed by OnePlus.
If accurate, the reported display would place a strong emphasis on gaming responsiveness. A 185Hz refresh rate could allow compatible games to display more frames per second than a conventional 120Hz panel, although the actual benefit would depend on game support, performance settings and the phone’s ability to sustain the necessary workload.
The reported 9,000mAh battery could also provide substantial capacity for extended gaming and other demanding tasks. Actual battery life would still depend on factors such as display brightness, refresh rate, network conditions, chipset efficiency,cy and the cooling fan’s power consumption.
The Snapdragon 8 Elite Gen 5 is another key part of the rumored configuration, but the final chipset and its performance characteristics remain unverified for this particular phone. The leaked cooling design alone is not enough to establish how the Ace 7 would compare with other flagships or the reported gaming-focused Ace 7.
Digital Chat Station claims the actively cooled Snapdragon 8 Elite Gen 5 device can challenge Snapdragon 8 Elite Extreme Gen 6 phones in sustained gaming performance. That is a tipster claim and will require independent testing. That is a claim attributed to the tipster. Comparisons will require independent testing of retail hardware.
OnePlus Ace 7 Launch Could Happen Later in October
Unnamed OnePlus Performance Phone Is Tipped for Late October. The timing has fuelled speculation that the device could be the OnePlus Ace 7, particularly given the earlier reports about its chipset, high-refresh-rate display and active cooling system.
However, the tipster has not explicitly named the phone in the cooling-system leak. The OnePlus Ace 7 identification therefore remains unconfirmed, and OnePlus has not officially announced the device, its specifications, or a launch date.
The same caution applies to the leaked schematic. It offers a possible look at the cooling architecture being tested, but it does not establish that the design will appear unchanged in a commercially available phone.
What the Cooling Leak Could Mean for OnePlus Ace 7
The reported dual-airflow system suggests that OnePlus could be exploring a more specialized approach to smartphone thermals. By directing hot air away from the user’s hands while separately managing heat around the rear panel, the design aims to address both sustained performance and comfort during demanding workloads.
The reported AI temperature sensor and noise- and dust-reduction measures point to some of the practical challenges that come with fitting a fan inside a smartphone. Yet the key questions remain unanswered: how effective the cooling system will be, how audible the fan will become under load, and whether the design will reach the final product. For now, the OnePlus Ace 7 remains a rumored device. Its Snapdragon chipset, 185Hz display, 9,000mAh battery, and possible October launch should all be treated as unconfirmed until OnePlus provides official details or the phone is independently tested.
